Designer Lithium Automotive
Engine Starting Batteries....
Can we make one for your special application ?
Battery Management System Protections:
+ Overcharge voltage / current
+ Over / under Temp and Short Circuit
+Cell equalization balancing @ .01 delta voltage differential
and shuts down > 72 hrs of non- use to preserve all its power.

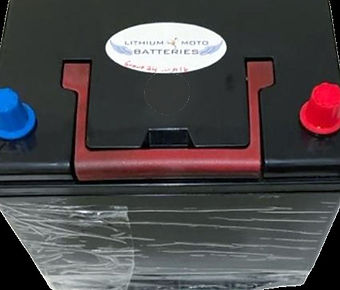

Lithium starting battery for all engine applications
Compatible with all car, truck, boat engine alternators that put out 14+ volts. Drop in replacement. Works with any and all alternators, current limited charging and discharging, Diesel engines included
Balancing - continuous
OverVoltage from charging, no crowbar needed
OverCurrent from charging
Under Voltage from discharge - UVP - 9.8V
Parasitic drain auto shut off - LVD - 13.0V
Low Voltage engine start reserve
Short Circuit protection
Thermal: over/under temp - dual sensors
LED Battery status indicator
"Wakeup" button - saves energy in non-use
Heat sink AL plate- keeping Mosfets cool
Remote Panel Digital display option
Major Benefits of Aluminum Case
The aluminum case is thermally conductive: Any internal heat is transferred to the case. AL is better looking, wont melt, environmentally friendly.
Operating Temps: - 30 to + 65C
Life cycles: 3 - 4000 / 8 to 10 yrs
Self discharge rate: < 1% / month
Continuous Discharge - 80+ amps
Max discharge: as required
contact for 16V or 24V
Ah sizes are:
7Ah at 400CA
14Ah at 800CA
21Ah at .. too much CA
bigger ?... contact us
Safe to use
Batteries are waterproof, and immune to vibration.
Non flammable like gasoline, non volatile lithium LiFepo4 chemistry
Power Saver Auto-Jump Feature
Lithium battery charging
LithiumMoto's exclusive battery
Auto-Jump feature means you'll NEVER have to jump start your vehicle again; this makes all jump starters obsolete.
Just push the awake button to bring battery out of LVD protection mode.
This button is to be located remotely by cable for easy access thru firewall, etc. see pic ...>
Each battery has a LED indicating an "awake" full power condition
or sleep mode.
Rarely will your new battery need charging unless it is drained to UVP from alternator inop condition while driving.
LithiumMoto also has Lithium batteries for 50cc scooters, racing and off-road / powersports / dirtbikes that dont need a BMS governed battery.
They are less $ and for smaller engines. Some have flying leads vs a hard case for flexible connections....... email for purchase
Lithium balancing smart- charger
with AC pwr supply $60 w battery.
We ALSO can replace Ballistic EVO 2
lithium batteries with new cells or make new with same dims.
All H6, H7, H8 Lithium batteries are made to order
